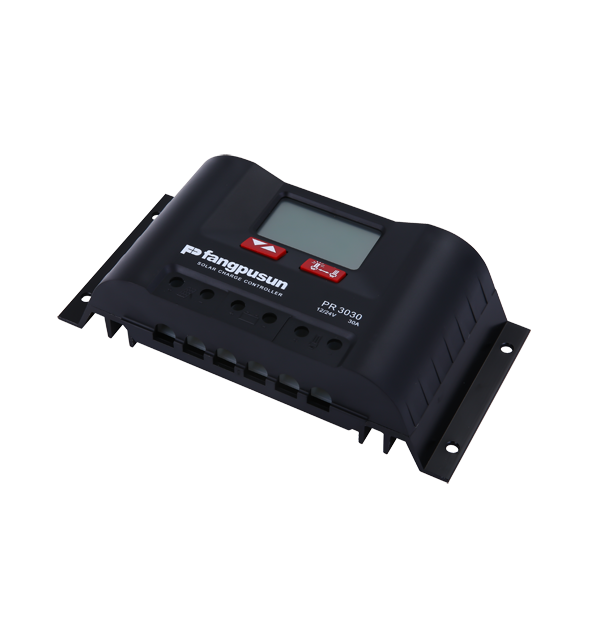

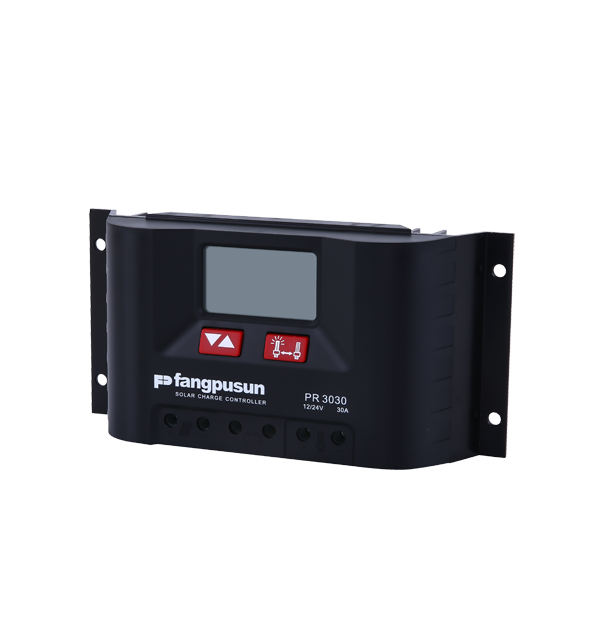

Fangpusun PR
PR 1010, PR 1515, PR 2020, PR 3030
The Fangpusun PR 10-30 series of charge controllers is the highlight in the range.The latest charging technologies,combined with a Fangpusun AtonIC state of charge determination which has been significantly improved once again,result in optimal battery maintenance and control of the module output of up to 900 Wp which can be connected to it.
A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.
Electronic protection functions
→Electronic protection functions
→Overcharge protection
→Deep discharge protection
→Reverse polarity protection of load, module and battery
→Automatic electronic fuse
→Short circuit protection of load and module
→Overvoltage protection at module input
→Open circuit protection without battery
→Reverse current protection at night
→Overtemperature and overload protection
→Battery over voltage shutdown
Display
Graphical LCD display for operating parameters, fault messages, self test
Operation
Simple menu-driven operation
Programming by buttons
Manual load switch
Options
Prepayment interface
External temperature sensor
Alarm contact
Certificates
Compliant with European Standards (CE)
RoHS compliant
SGS
ISO 9001
Made in China

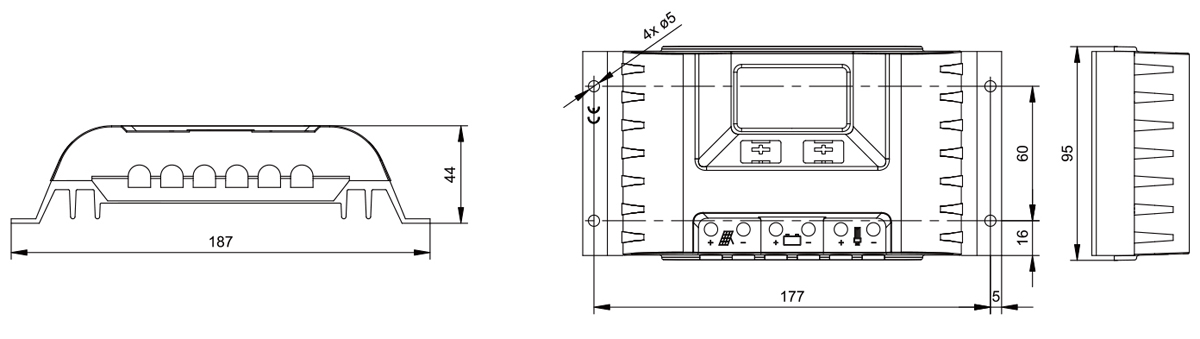

Overall dimension

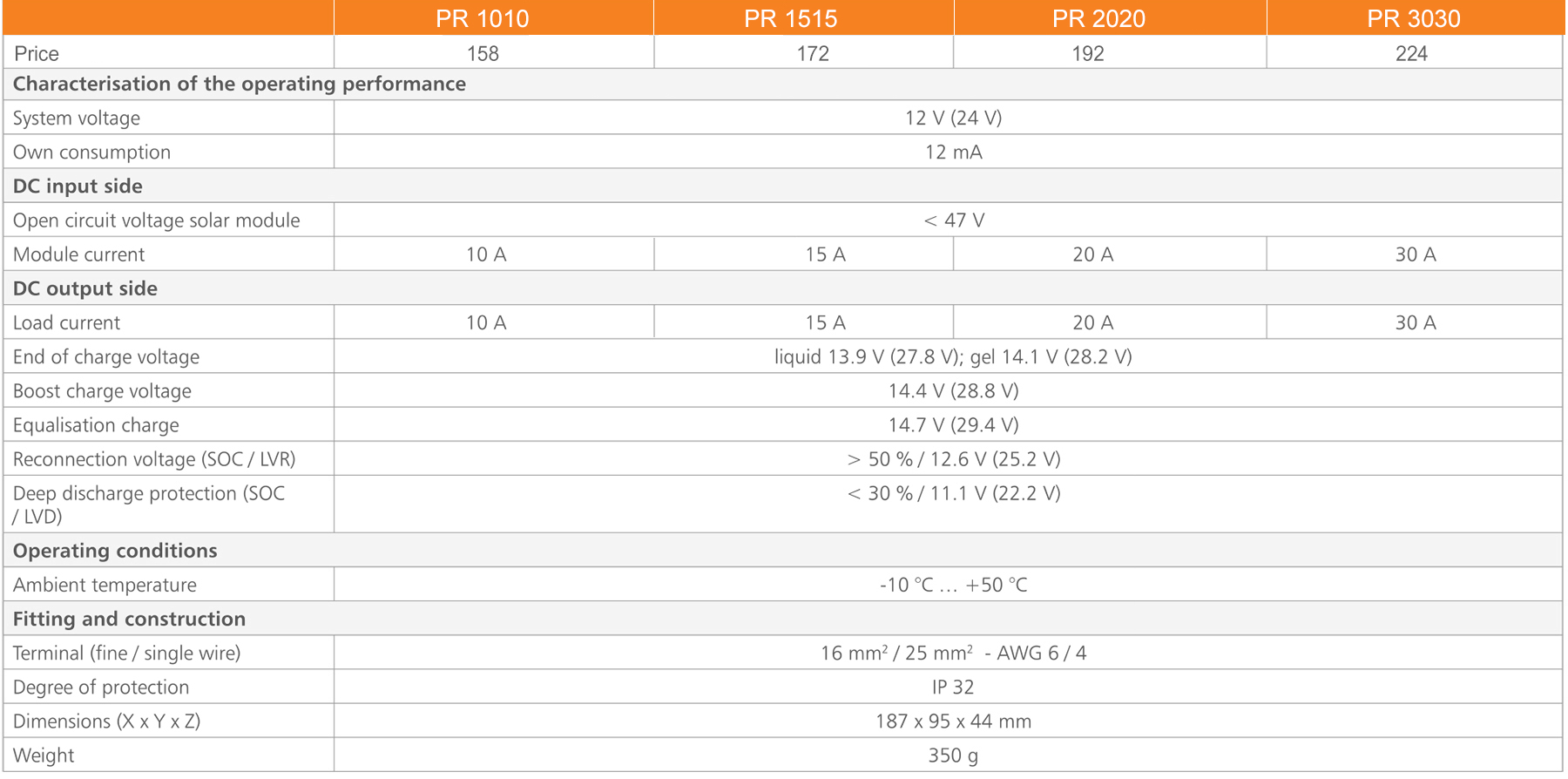

Technical data
Technical data at 25 C/77 F
Note:Almost Fangpusun PRL seris date is same withPR series,but PRL has one more backlight function
