Fangpusun FLE max MPPT
MPPT 100-300
The MPPT 100-300 is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from Fangpusun. The advanced MPPT100-300 MPPT algorithm offers increased energy harvest from the PV array than other MPPT controllers. The MPPT100 -300 delivers both higher voltage and higher power, offering improved flexibility and performance.
Fangpusun network communications and OPTICS RE compatibility allows the FLEXmax 100 to be remotely programmed, monitored and controlled via any internet connected device providing unrivalled system integration.
The MPPT100-300 is a top-of-the-line high performance, efficient and versatile charge controller for your advanced power system.
Product feature
→Up to 99% efficiency
→Logs up to 128 days of operational data
→Supports 24, 36, and 48 Vdc battery voltages
→100A output for up to 5kW of charging
→Controls an equaliz ation cycle manually or automatically
→Wide input voltage range allows the use of a PV array configuration up to 300 Voc
→Can be remotely monitored and configured (up to 300 feet or 100 meters away) using MATE3s system display
→Built-in ground-fault protection and rapid shutdown capacitor discharge for easy code-compliant installation
Displays
→4LED indicators
Options
→HUB4
→HUB10.3
→MATE3s
→Remote Temperature Sensor (RTS)
Certificates
Compliant with European Standards (CE)
RoHS compliant
SGS
ISO 9001
Made in China

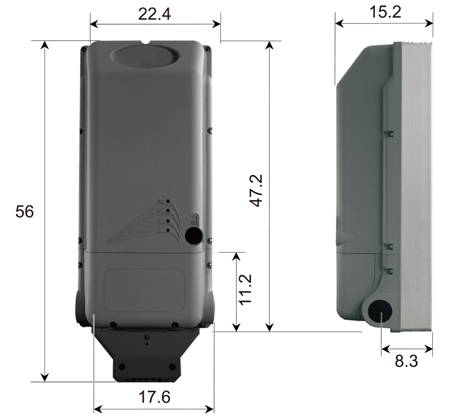

Overall dimension

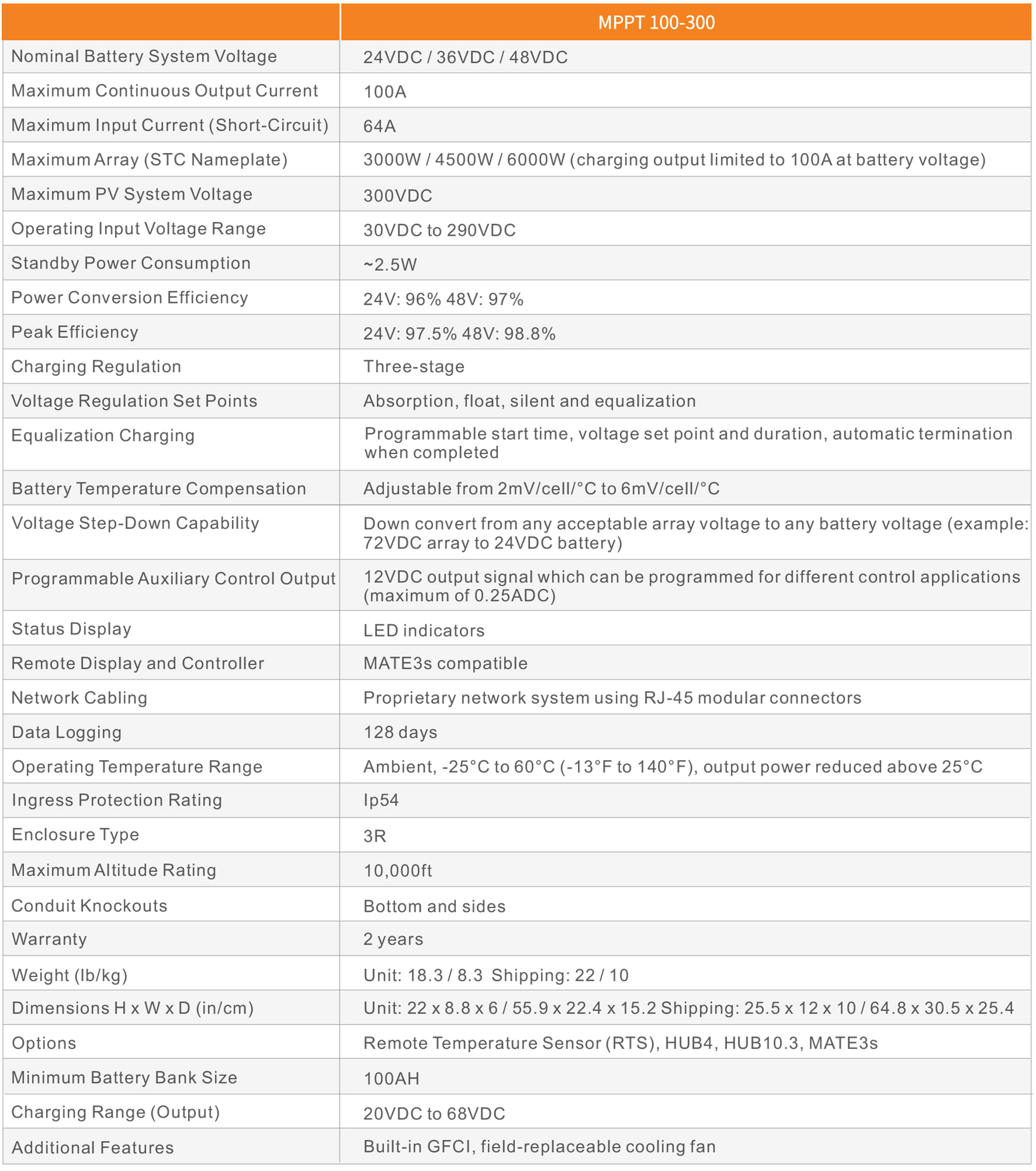

Specifications
