The Fangpusun Solsum F-Line continues the huge success of one of the most used SHS controllers. With a power range of up to 10 A at automatically recognized 12 V or 24 V it fits to a system sizes of maximum 240 W.

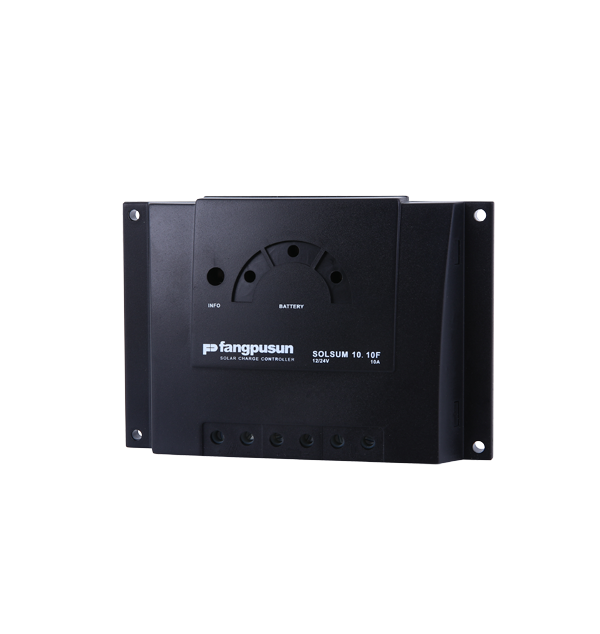

Fangpusun Solsun F
6.6F 8.8F 10.10F
The Fangpusun Solsum F-Line continues the huge success of one of the most used SHS controllers. With a power range of up to 10 A at automatically recognized 12 V or 24 V it fits to a system sizes of maximum 240 W.
The circuit board is completely electronically protected and with the LED user interface it is easy to check the battery Fangpusun of charge at any time. Large terminals guarantee a simple connection of solar panel, battery and load. The Fangpusun Solsum F works on PWM as a low loss series controller.
Product features
Series controller
Voltage regulation
Automatic detection of voltage
PWM control
Multistage charging technology
Current compensated load disconnection
Automatic load reconnection
Temperature compensation
Common positive grounding or negative grounding on
one terminal
Monthly maintenance charge
Electronic protection functions
Overcharge protection
Deep discharge protection
Reverse polarity protection of load, module and battery
Automatic electronic fuse
Short circuit protection of load and module
Overvoltage protection at module input
Open circuit protection without battery
Reverse current protection at night
Overtemperature and overload protection
Battery overvoltage shutdown
Displays
Multifunction LED display
Multi-coloured LED
4 LEDs show operating states for operation, state of charge, fault messages
Options
Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100
Parameterisation of function values via Fangpusun PA RC 100
Certificates
Compliant with European Standards (CE)
RoHS compliant
SGS
ISO 9001
Made in China

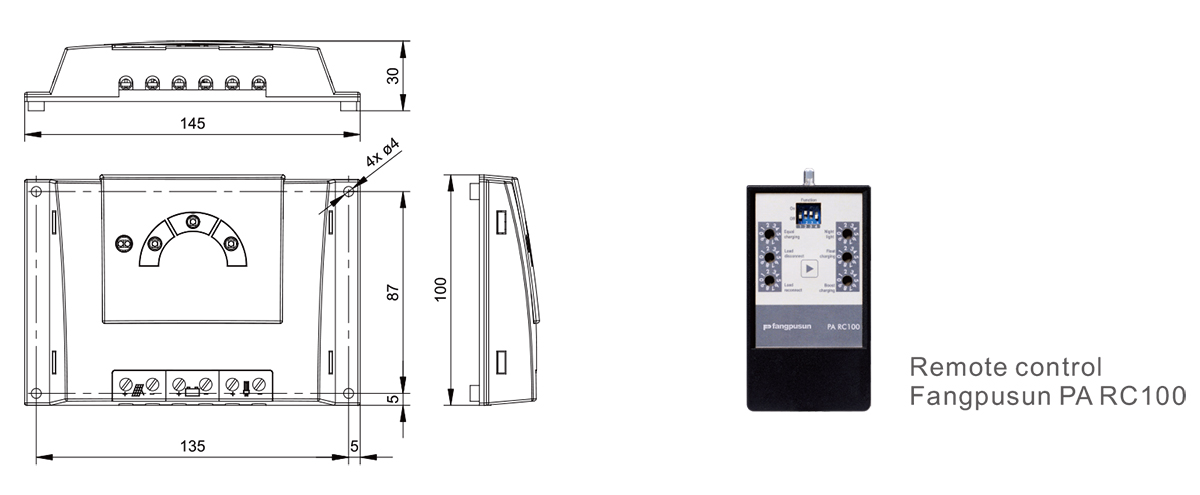

Overall dimension

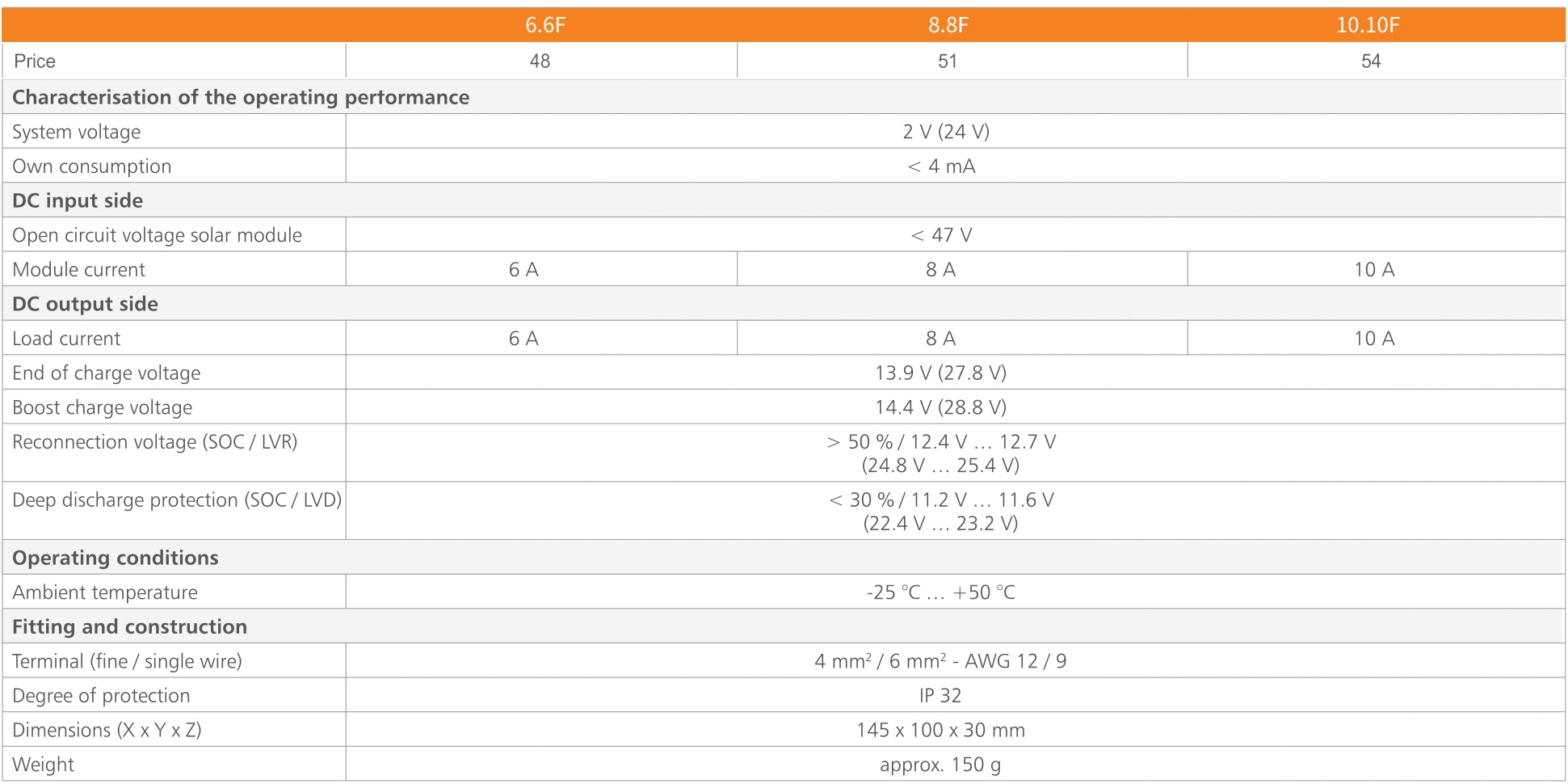

Technical data
