Solar Charging Controller

SOLARIX PRS

The simplicity and high performance of the Fangpusun Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.

Product Details

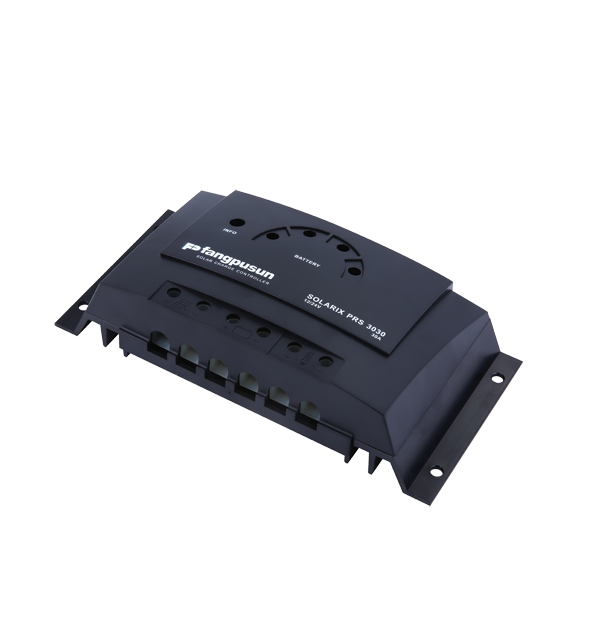

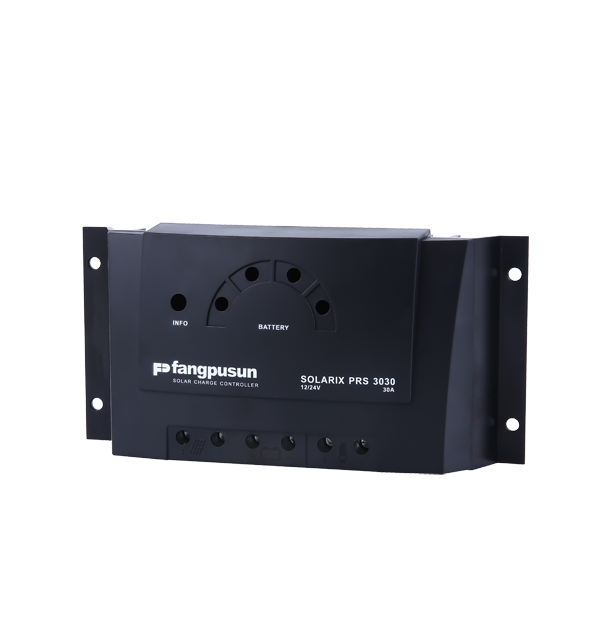

Fangpusun Solarix PRS

PRS 1010, PRS 1515, PRS 2020, PRS 3030

The simplicity and high performance of the Fangpusun Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.

Several LEDs in various colours emulate a tank display, which gives information on the battery's state of charge. Here, Fangpusun's latest algorithms are employed, resulting in optimal battery maintenance. The Solarix PRS charge controllers are equipped with an electronic fuse, thus making optimal protection possible. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.

For larger projects, the charge controllers can also be equipped with special functions: e.g. with night light function and selectable charging plateau and deep-discharge protection voltages.


Product features


Series controller

Voltage regulation

Automatic detection of voltage

PWM control

Multistage charging technology

Current compensated load disconnection

Automatic load reconnection

Temperature compensation

Common positive grounding or negative grounding on one terminal

Monthly maintenance charge


E ectronic protection function


Overcharge protection

Deep discharge protection

Reverse polarity protection of load, module and battery

Automatic electronic fuse

Short circuit protection of load and module

Overvoltage protection at module input

Open circuit protection without battery

Reverse current protection at night

Overtemperature and overload protection

Battery overvoltage shutdown


Displays


Multifunction LED display

Multi-coloured LED

5 LEDs show operating states for operation, state of charge, fault messages


Options


Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100

Parameterisation of function values via Fangpusun PA RC 100


Certificates


Compliant with European Standards (CE)

RoHS compliant

SGS

ISO 9001

Made in China

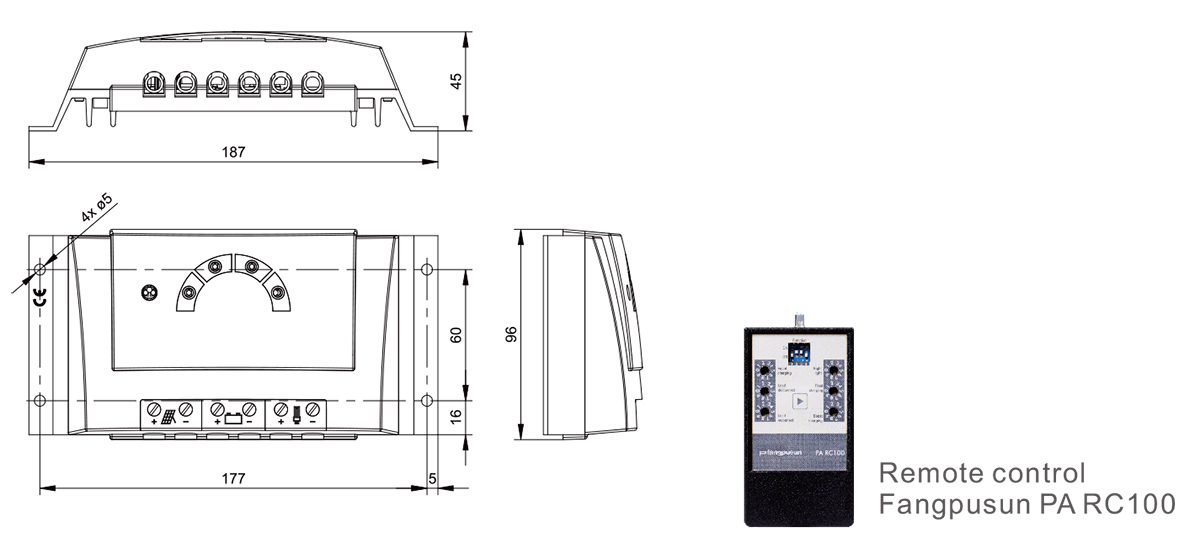

Overall dimension

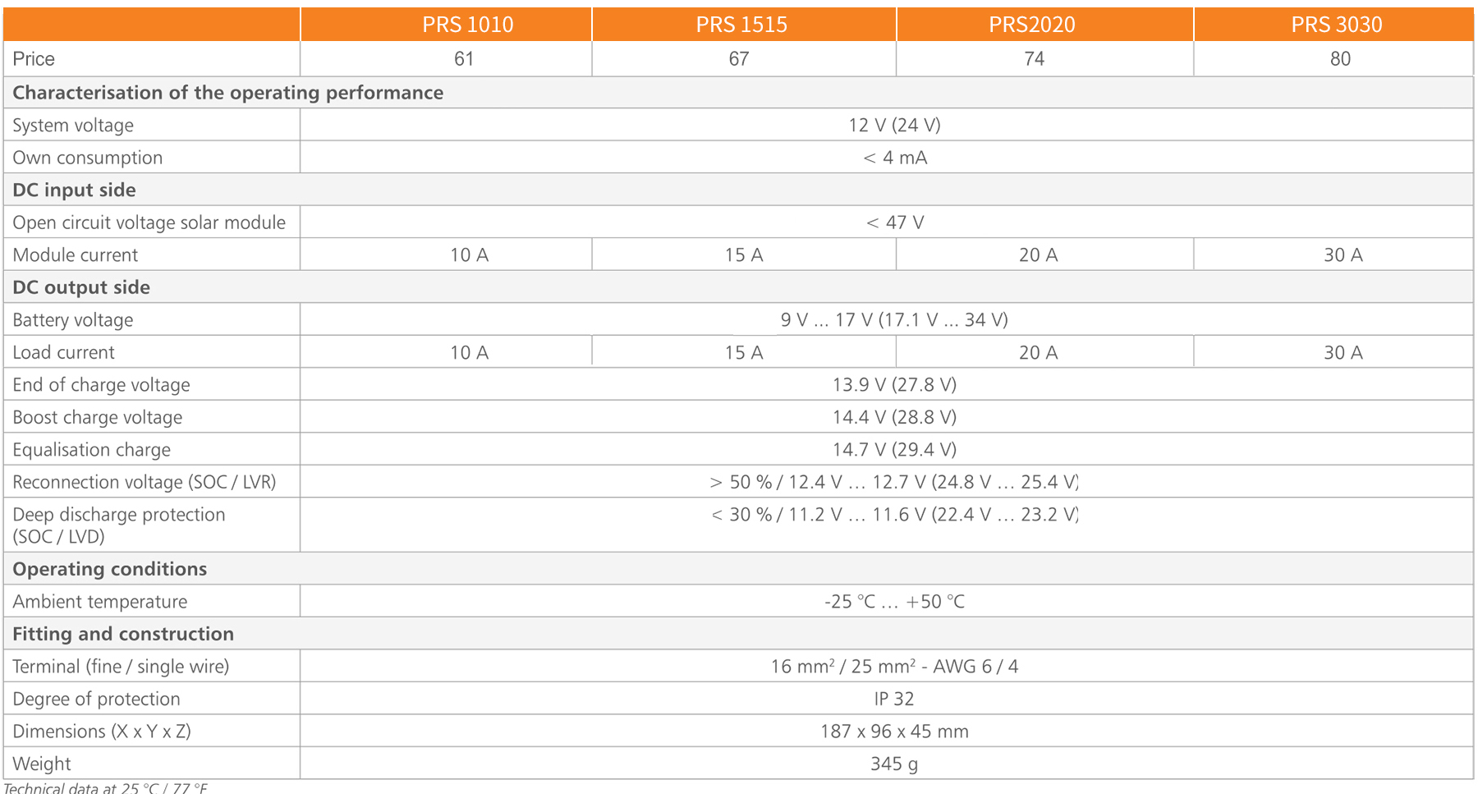

Technical data
