Fangpusun Solarix MPPT
MPPT 1010, MPPT 2010

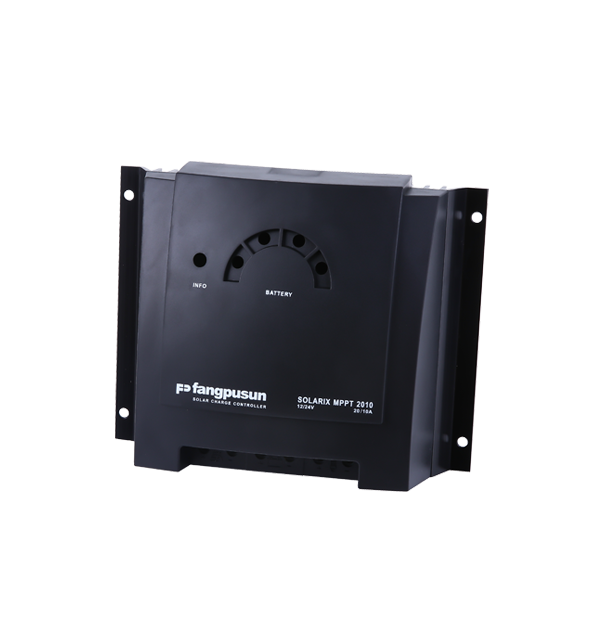

Fangpusun Solarix MPPT 2010 is a solar charge controller with Maximum Power Point Tracking. It is specially designed to work with all established module technologies and is optimized for solar systems with module voltages higher than the battery voltage. The fangpusun Solarix MPPT 2010 is especially qualified in combination with grid tied solar modules. The advanced MPP-tracking algorithm from Fangpusun assures that the maximum available power of the solar generator is charged to the batteries. The Fangpusun Solarix MPPT 2010 with latest technology ensures full performance in all conditions, a professional battery care combined with modern design and excellent protection.
Product features
Maximum Power Point Tracker(MPP tracker)
Voltage regulation
Automatic detection of voltage
PWM control
Current compensated load disconnection
Automatic load reconnection
Temperature compensation
Monthly maintenance charge
Electronic protection functions
Overcharge protection
Deep discharge protection
Reverse polarity protection of load, module and battery
Reverse polarity protection by internal fuse
Automatic electronic fuse
Short circuit protection of load and module
Overvoltage protection at module input
Open circuit protection without battery
Reverse current protection at night
Overtemperature and overload protection
Battery overvoltage shutdown
Displays
Multifunction LED display
Multi-coloured LED
5 LEDs show operating states for operation, state of charge, fault messages
Options
Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100
Parameterisation of function values via Fangpusun PA RC 100
Certificates
Compliant with European Standards (CE)
RoHS compliant
SGS
ISO 9001
Made in China

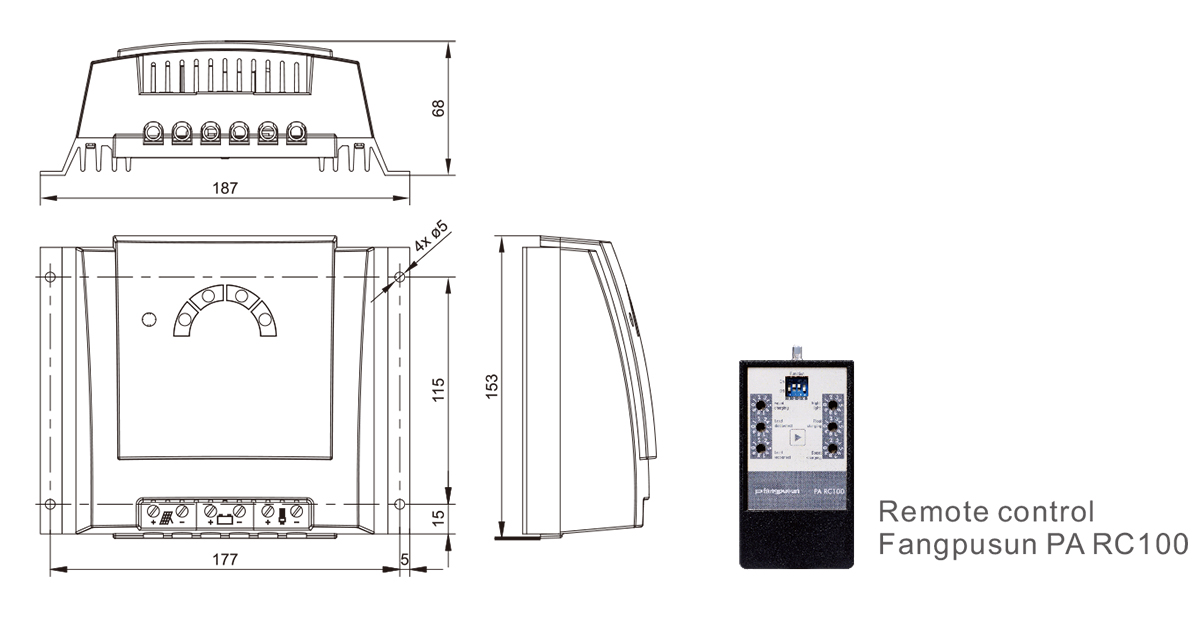

Overall dimension

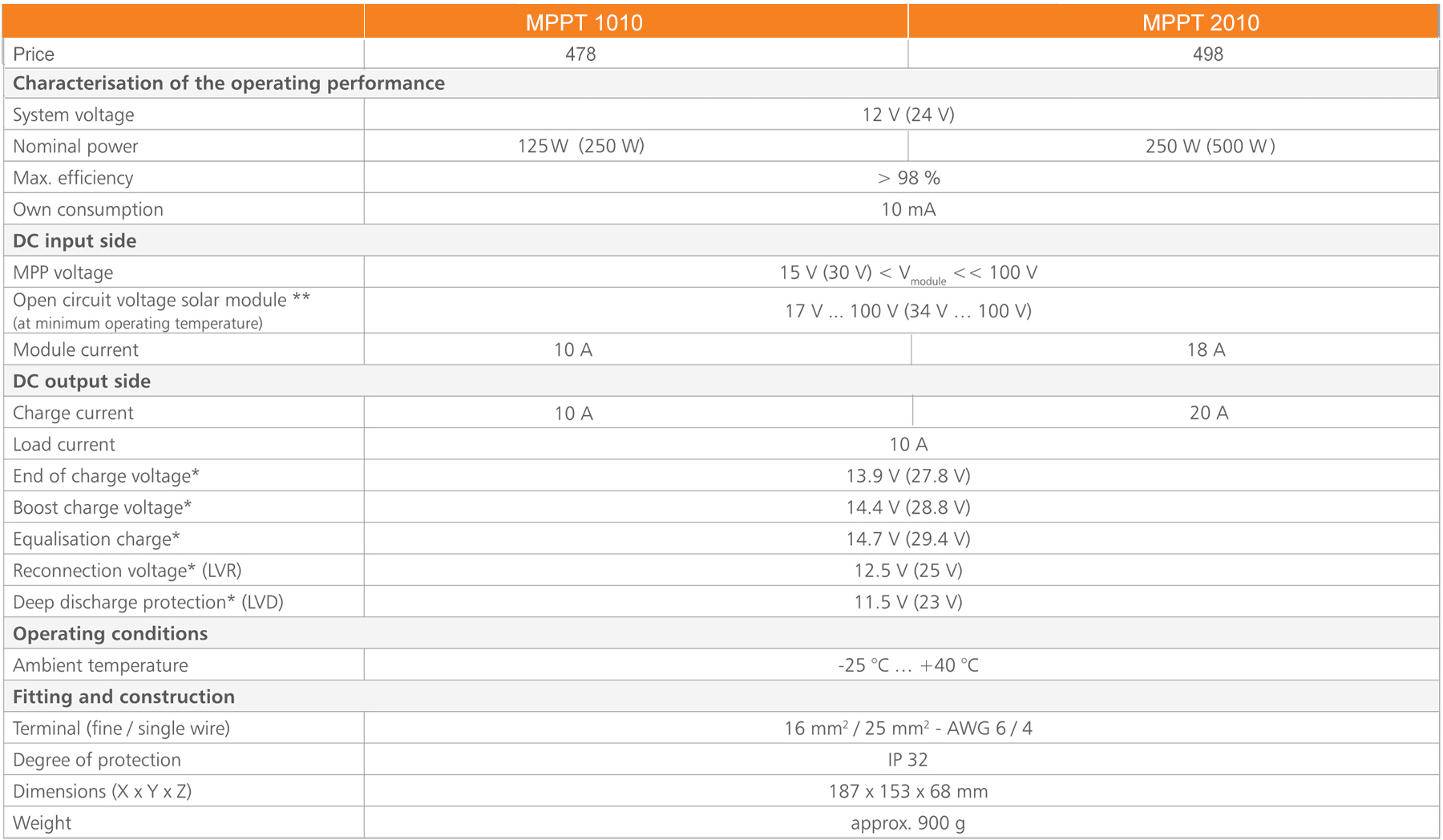

Technical data
* see options Technical data at 25 °C/ 77 °F
**CAUTION: If an open circuit voltage of more than 100 V is supplied to the connected solar module,the controller will be destroyed. When selecting the solar module, it is important to bear in mind that the open circuit voltage should never exceed 100 V over the entire working temperature range.
When using solar modules with a maximum open circuit voltage of between 75 and 100 V (over the
entire temperature range), all installation steps must be carried in accordance with protection class //.
