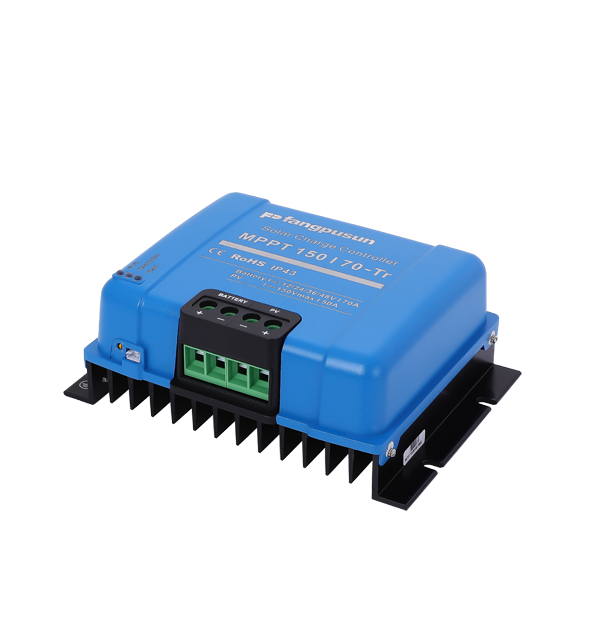

fangpusun solar charge controller mppt 150/45,150/60,150/70
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPTcontroller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
Conventional MPPT's tend to lock to a local MPP, which may not be the optimum MPP.
The innovative Fangpusun algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms,selectable with a rotary switch (see manual for details).
Extensive electronic protection
→Over-temperature protection and power derating when temperature is high.
→PV short circuit and PV reverse polarity protection.
→PV reverse current protection.
Internal temperature sensor
→Compensates absorption and float charge voltage for temperature.
Real-time data display options
→Apple and Android smartphones, tablets and other devices: see the VE .Direct to Bluetooth Smart dongle
→ColorControl panel
Certificates
. Compliant with European Standards (CE)
. RoHS compliant
. SGS
. ISO 9001
. Made in China

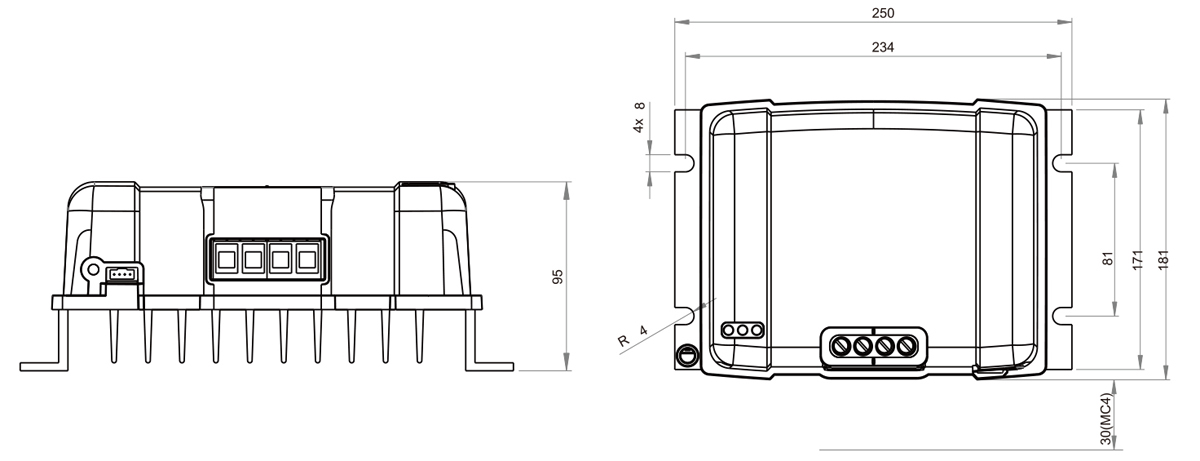

Overall dimension
Maximum Power Point Tracking
Upper curve:
Output current () of a solar panel as function of output voltage (V).
The maximum power point (MPP) is the point
Pmax along the curve where the product Ix V reaches its peak.
Lower curve:
Output power P= Ix V as function of output voltage.
When using a PWM (not MPPT) controller the output voltage of the solar panel will be nearly equal to the voltage of the battery, and will be
lower than Vmp.

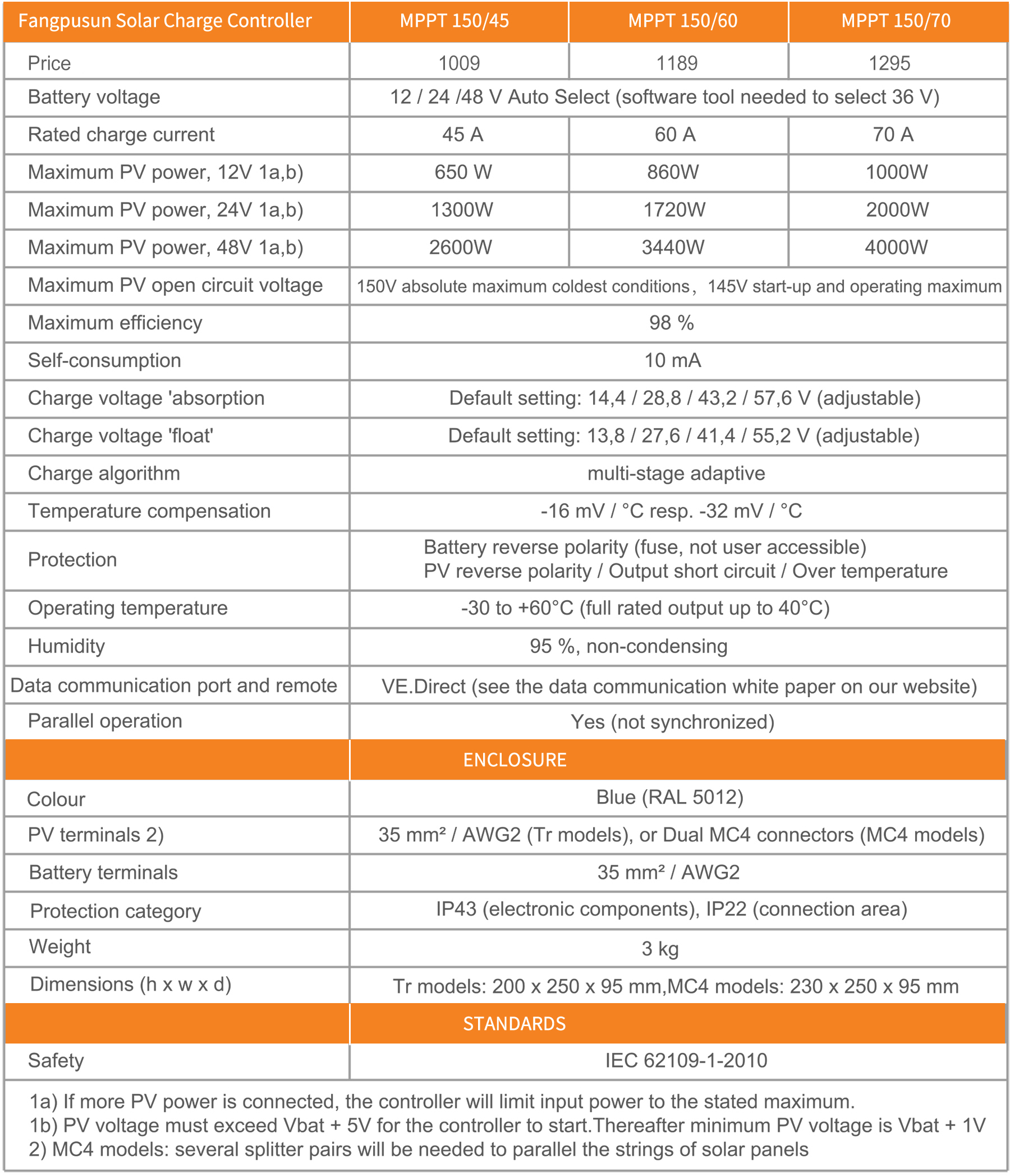

Technical data
